Four layers, each with a different job
An export vacuum is packed in layers. The retail box (colour box) carries the brand, the features and the legal marking. Inside it, protective inserts hold the unit and its accessories in place. A master carton groups one or more retail boxes for handling and shipping. Pallets, wrap and corner protection group master cartons for the container. A failure at any layer can cost the whole shipment: a brilliant retail box is no use if the master carton crushes, and a strong carton is no use if the product shifts inside it.
| Layer | Main job | Common choices |
|---|---|---|
| Retail box | Brand, features, legal marking | Printed corrugated, folding carton with sleeve, window or no window |
| Inner protection | Hold and cushion the unit and accessories | Moulded pulp, die-cut corrugated, expanded polystyrene or polyethylene foam, bags for hose and tools |
| Master carton | Group units for shipping | Plain or printed corrugated, single or double wall, one to several units |
| Pallet and wrap | Unitise cartons for loading | Wood or other pallet type, stretch wrap, corner boards, strapping |
Retail box design for a bulky product
Retail packaging for a vacuum must show the product, state its main features without exaggeration, and carry legal and safety text. Typical content includes model name, voltage and plug type for the market, rated power or battery details, the key claims that the datasheet supports, the filtration grade by EN 1822 designation where applicable, a barcode and the importer's details. Claims on the box should be limited to what a test report supports. Box design also has a cost dimension: more colours, special coatings and inserts raise the minimum for printing runs, which is one reason a labelled model carries a higher MOQ than an existing one, as covered in vacuum cleaner OEM and MOQ.
A box that is easy to open and close helps retail chains that handle returns. Include a handle only if the board and the unit weight allow it, and check whether the retailer's warehouse needs shipping-ready packaging that does not require another carton.
Inner protection: cushion what breaks
The vulnerable parts of a vacuum are the motor head, the bin and the clear covers, the telescoping wand, the brush head and, on a robot, the sensors and the bumper. Inserts should hold these so the unit cannot move, and should not rely on the retail box alone for protection. Hoses, wands and accessories are best bagged or boxed separately so they cannot scratch the housing. For cordless machines, the battery pack should be fitted and labelled according to the transport route chosen, a point covered in shipping cordless vacuums. Moulded pulp is increasingly used as a plastic-free alternative to foam, but its performance should be proven in the drop test, not assumed.
Master carton: strength, size and weight
The master carton is where container economics are decided. Three variables interact: the carton dimensions, the number of units per carton and the carton weight. A carton that is slightly too tall can cost a whole layer on a pallet, and one that is too heavy slows manual handling and may exceed retail warehouse limits. The board grade should be chosen for the weight and the stacking height in the container; a double-wall board is a common choice for heavier uprights and wet dry units. Ask the plant to supply a carton drawing with board specification, and approve it before the first order, along with printed marks such as a fragile symbol, orientation arrows, a model code, a carton number and the net and gross weights.
Testing the pack
Packaging performance is confirmed by test. A pack-out drop test drops the packed unit on faces, edges and corners from a height tied to its weight, and the unit must work and show no damage afterwards. A vibration test simulates trucking, and a compression test simulates stacking. Industry procedures such as the ISTA series are widely used for parcel and freight simulation, and the right procedure depends on whether the product ships by container, by parcel or both. Results go in the program documents. The pre-shipment inspector repeats a basic drop test on sampled cartons, as described in pre-shipment inspection.
Labels and marking that customs and carriers read
- Shipping marks: consignee code, destination, carton number, gross and net weight, dimensions, and country of origin.
- Product marks: model, voltage, plug type and the CE or other conformity marks that apply to the model.
- Battery marks: battery class labels and handling labels for cordless units, aligned to the transport mode.
- Barcodes: unit barcode on the retail box and carton barcode on the master carton, readable by the receiving warehouse.
- Language: manuals and safety warnings in the languages of the destination market, packed in the retail box.

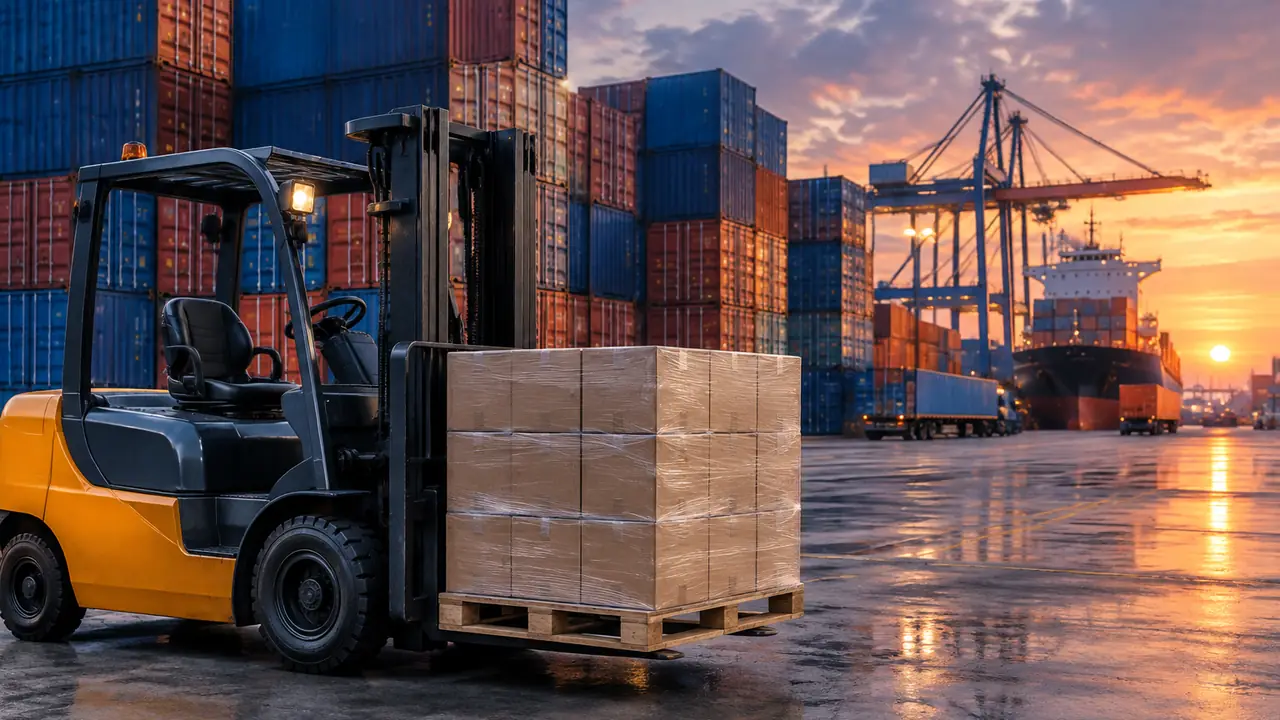

Pallets and container loading
For sea freight in full containers, the aim is a stable load that uses the cube without crushing the bottom layers. Pallets should be specified with the stack pattern, number of layers, wrap and corner protection. Floor-loaded cartons without pallets can increase the units per container but slow unloading and increase damage risk, which is a trade-off for each program. Wood packaging used for international shipping may need treatment marking under the rules of the destination country, so confirm the requirement with the freight forwarder before choosing pallets. Container selection, transit times and documents sit on the logistics and shipping page.
Spare parts and accessories in the pack
What goes in the box affects returns as much as what the box looks like. Spare filters, a second brush roll, a charging adaptor for the destination plug, a wall mount and a short quick-start sheet each need a defined place in the insert and a line in the packing list. Count them at inspection. If the program includes separate spare parts for the aftermarket, such as filters, bags or battery packs, those need their own retail packs and master cartons, with part numbers that match the manual so customers can reorder correctly. Plan these packs at the same time as the main product, because print runs and carton sizes are cheaper to set up together.
Packaging brief checklist
- Retail box artwork, dielines and legal text approved in writing.
- Insert material and design approved with a drop-tested sample.
- Master carton drawing, board grade and units per carton approved.
- Pallet pattern, wrap and loading plan approved before the first order.
- Labels and manuals checked against the destination market on the approved sample.
The desk coordinates packaging makers and the assembly plant so that the pack, the sample and the container plan agree. Send your product and destination via the quote form to include packaging in the brief.
